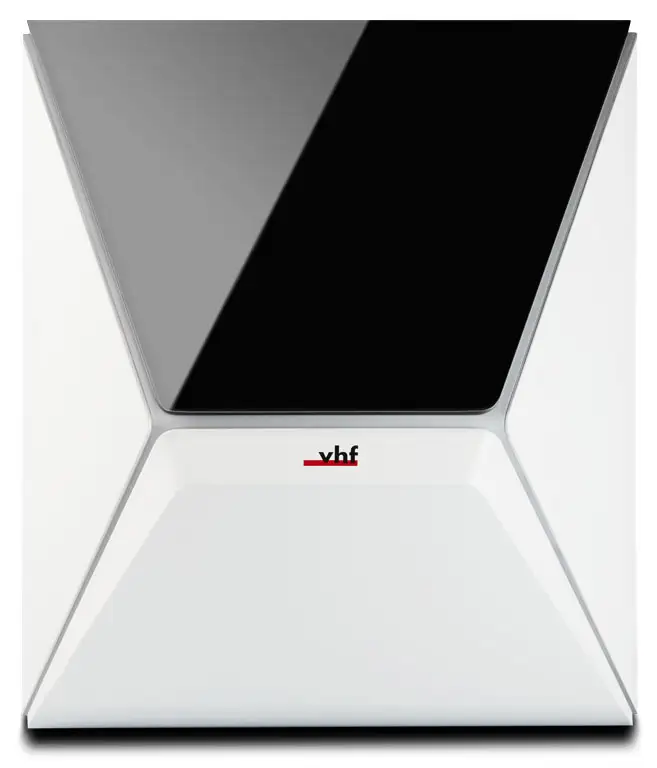

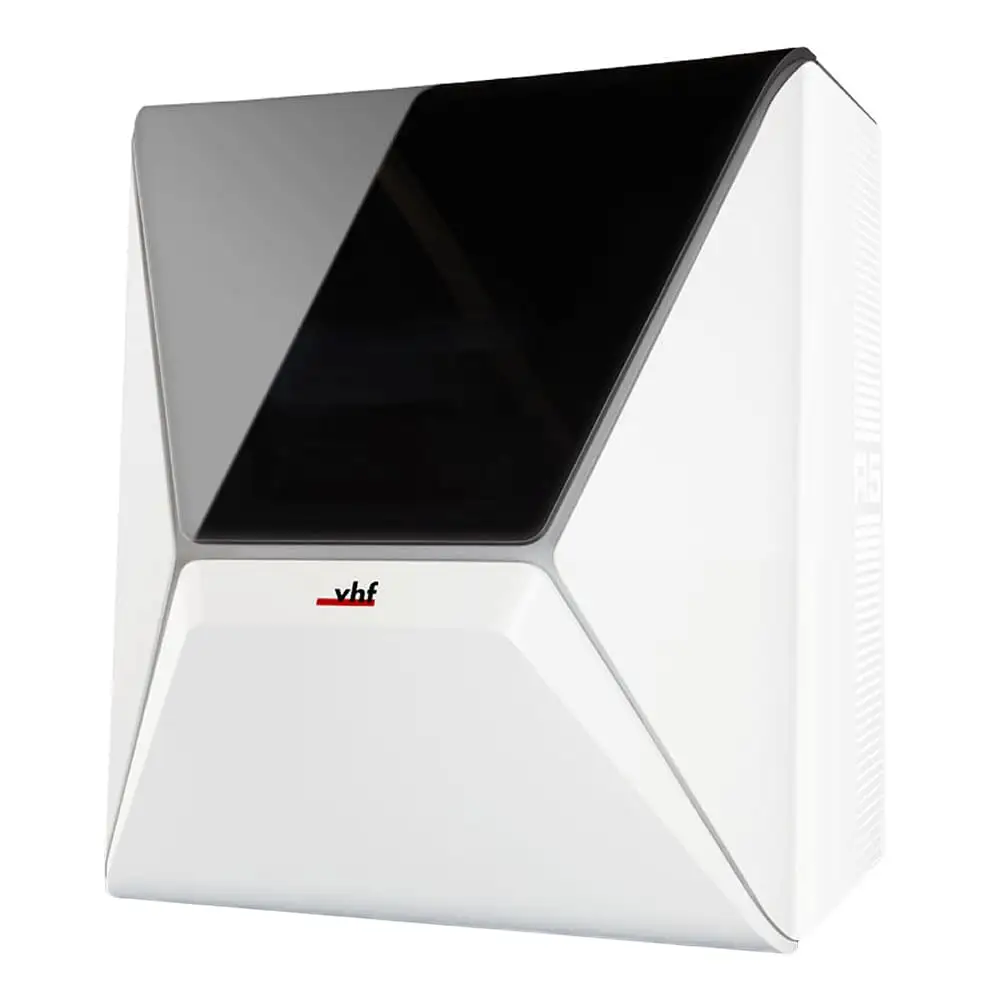

vhf R5 5-Axis Digital Milling Machine
Model: R5
5-axis dental milling and grinding machine for wet and dry processing of many dental materials, with automated disc and block changing.

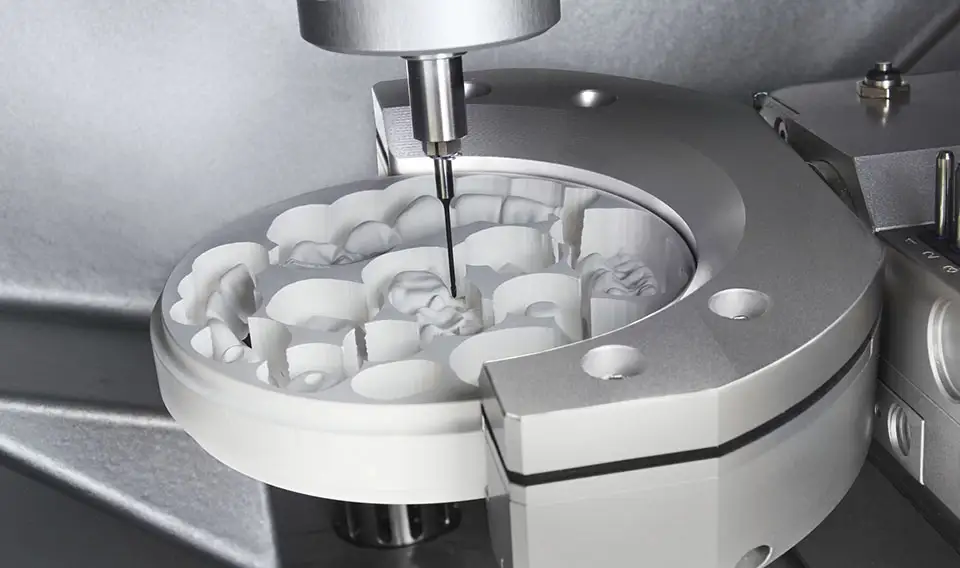

The vhf R5 is an advanced milling and grinding machine for dental laboratories, combining 5-axis machining with wet and dry processing. It works with zirconia, titanium, cobalt-chrome, glass ceramics, composites, plastics and wax, among other materials. A 16-tool magazine is paired with an automated changer that holds up to 10 discs, 60 blocks or 60 prefabricated abutments, depending on the holder configuration. The spindle reaches up to 80,000 rpm and repeatability is ±3 microns, which supports production of crowns, bridges, veneers, abutments and other dental restorations.
Request a quote
Key Features
Non-Stop Automated Production, Day and Night
Blank Changer for 10 Discs or 60 Blocks
Wet and Dry Processing with Plain Water
80,000 rpm Spindle with 3 µm Repeatability
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | 5-Axis Milling and Grinding Machine |
| Number of Axes | 5 |
| Spindle | Water-cooled high-precision spindle, 800 W |
| Spindle Speed | 80,000 rpm |
| Repeatability | ±0.003 mm |
| Spindle Axis Tilt | ±35° |
| Blank Changer | 10 discs, 60 blocks or 60 prefab abutment blanks |
| Discs | 98.5 mm diameter, 10–40 mm height |
| Processing Method | Wet (plain water) and dry, with built-in dryer and ionizer |
| Weight | Approximately 150 kg |
