Sirona

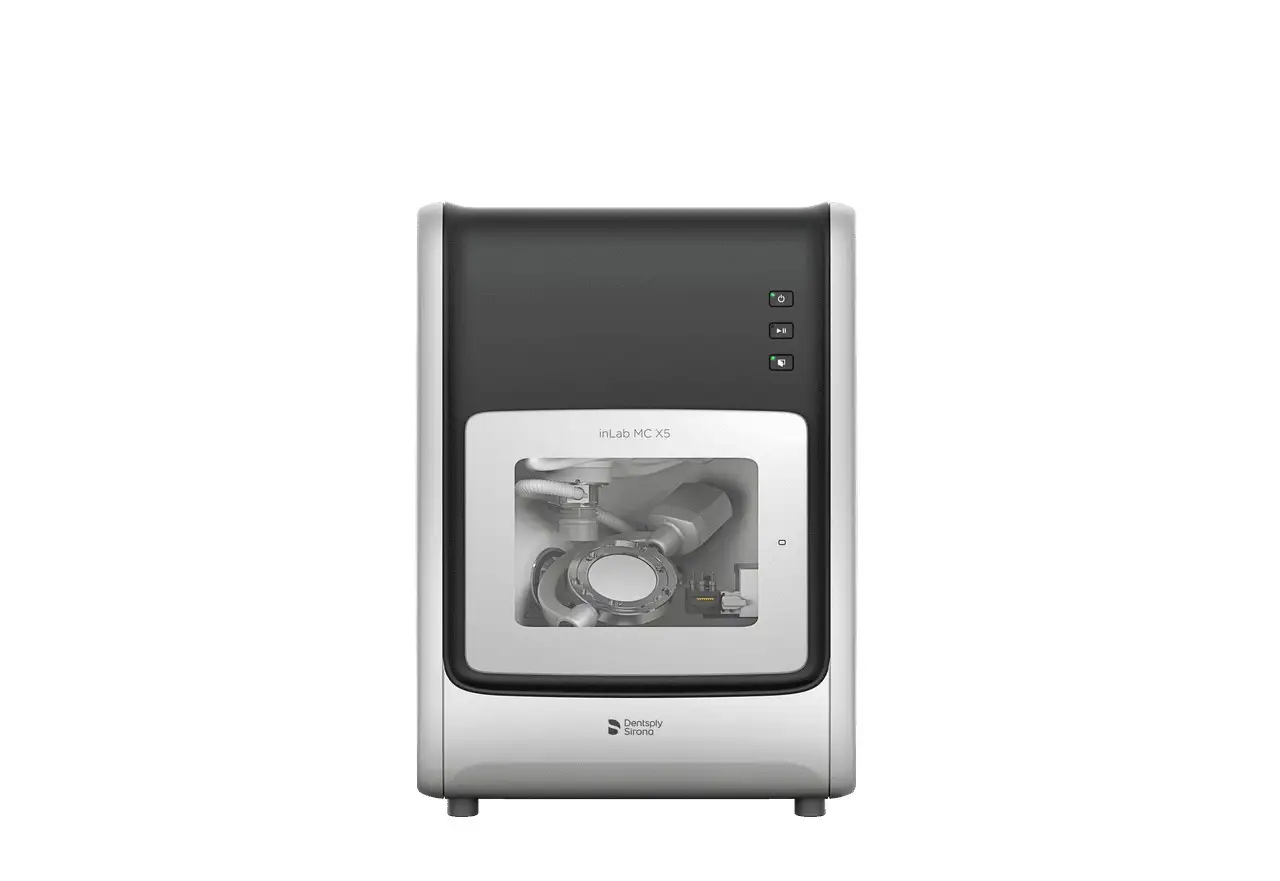

Sirona inLab MC X5 CAD/CAM System
Model: inLab MC X5
5-axis dental milling and grinding unit for wet and dry processing of discs and blocks in a wide range of dental materials.

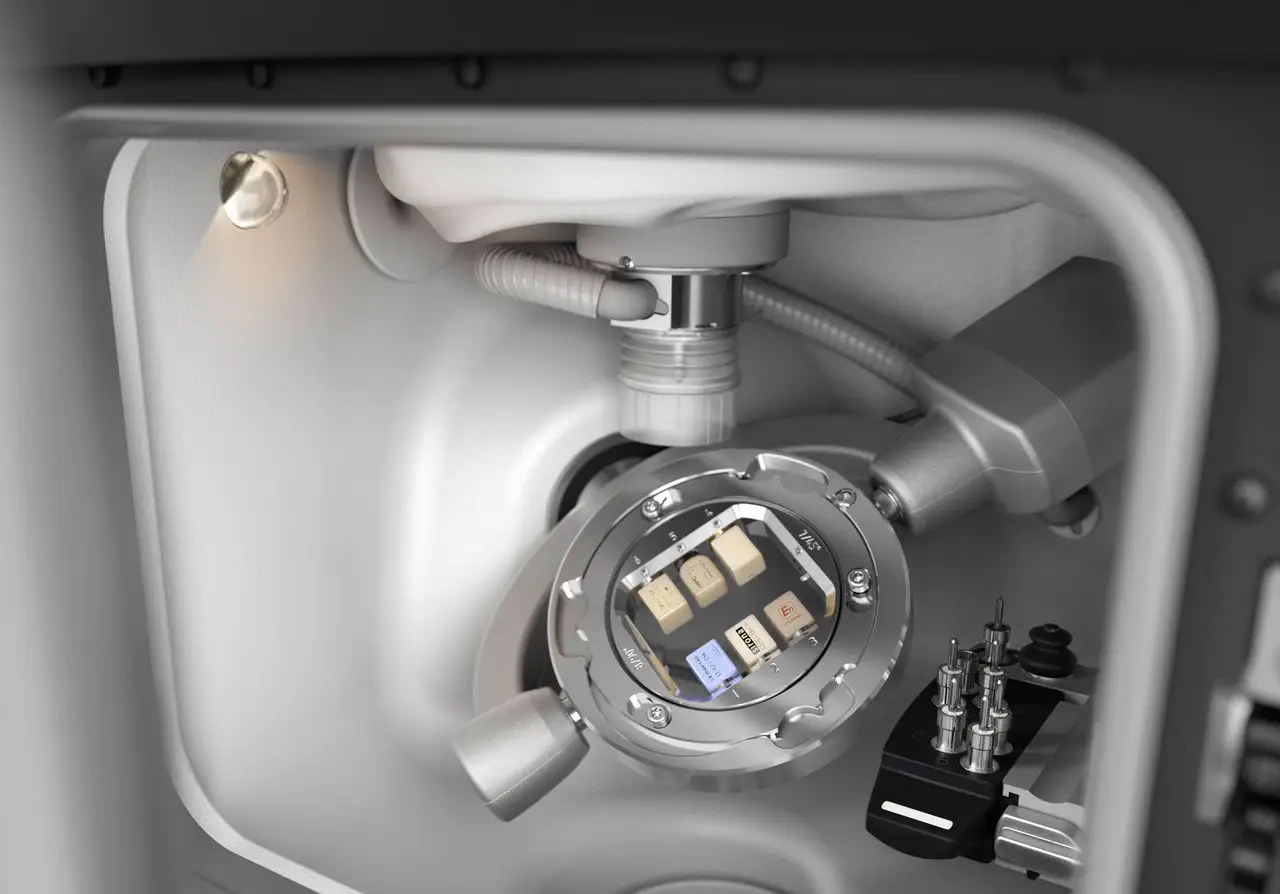

Dentsply Sirona's inLab MC X5 is a digital milling and grinding system for dental laboratories that produces restorations from compatible discs and blocks using both wet and dry processing. Its 5-axis machining handles complex geometries, implant-supported restorations included. Depending on material compatibility and the required configuration, it processes zirconia, PMMA, composites, wax, glass ceramics, hybrid ceramics, sintered metals and pre-milled titanium blanks. The machine takes discs 98 or 98.5 mm in diameter and up to 35 mm high, and a multi-block holder fits up to eight blocks per process. It also has an automatic tool changer for up to six tools and Spindle Touch technology for precise workpiece positioning.
Request a quote
Key Features
5-Axis Milling and Grinding
Wet and Dry Processing in One Machine
Processes Both Discs and Blocks
Open System for Dental Laboratories
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | 5-Axis Laboratory Milling and Grinding Unit |
| Number of Axes | 5 |
| A-Axis Rotation | 360° |
| B-Axis Tilt | ±20° |
| Processing Method | Wet and dry, depending on material and indication |
| Workpieces | Standard 98.5 mm discs up to 30 mm thick, and blocks |
| Compressed Air | Minimum 7 bar |
| Noise Level | Below 63 dBA |
| Power Supply | 100–240 V, 50/60 Hz |
| Weight | Approximately 87 kg |
Interested in this device?
Contact our team for pricing, lead time, and clinic-ready setup.
