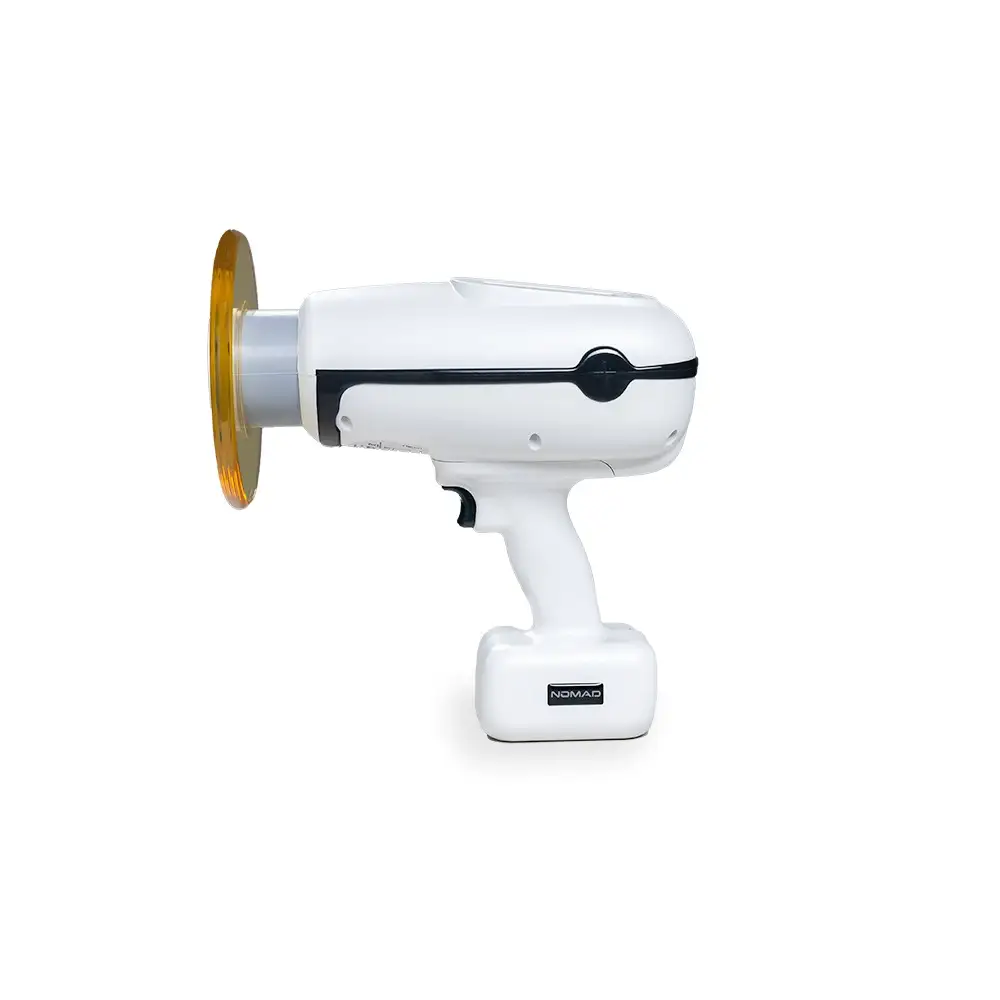

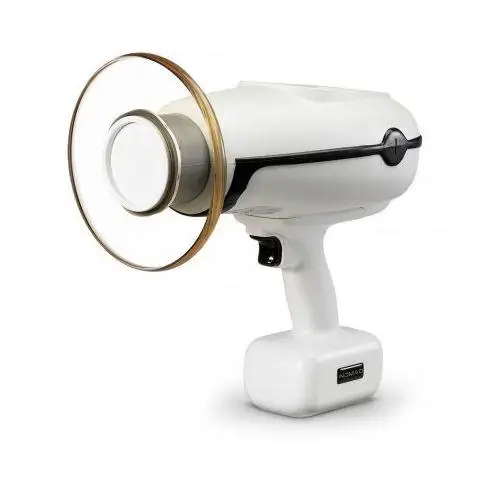

KaVo Kerr NOMAD Pro 2 Handheld Intraoral X-Ray System
Model: NOMAD Pro 2
Battery-powered handheld dental X-ray system for intraoral imaging with dental film or digital imaging receptors.
The KaVo NOMAD Pro 2 is a handheld dental X-ray system that produces diagnostic images with dental film, intraoral digital sensors or phosphor imaging plates. Tube voltage is fixed at 60 kV and tube current at 2.5 mA, while exposure time can be adjusted to suit different imaging needs. A rechargeable lithium-ion battery and an ergonomic design make it easy to handle and move around the dental practice. For protection, it has an external backscatter shield and internal radiation shielding, and a control panel lets the operator choose the appropriate imaging settings.
Request a quote
Key Features
Advanced Radiation Shielding
0.4 mm focal spot and a 60 kV DC X-ray generator
Long-Lasting Battery & Ergonomic Design
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | Handheld Intraoral Dental X-Ray System |
| X-Ray Generator Voltage | 60 kV DC |
| X-Ray Tube Current | 2.5 mA |
| Exposure Time Range | 0.02–1.00 seconds |
| Focal Spot Size | 0.4 mm |
| Battery | 21.6 V DC Lithium-Ion |
| Source-to-Skin Distance | 20 cm |
| X-Ray Field | 60 mm round |
| Inherent Filtration | Greater than 1.5 mm Al equivalent |
| Maximum Duty Cycle | 1:60 |
| Weight | Approximately 2.7 kg |
| Dimensions (W × L × H] | 14 × 28 × 27 cm |
