Redon

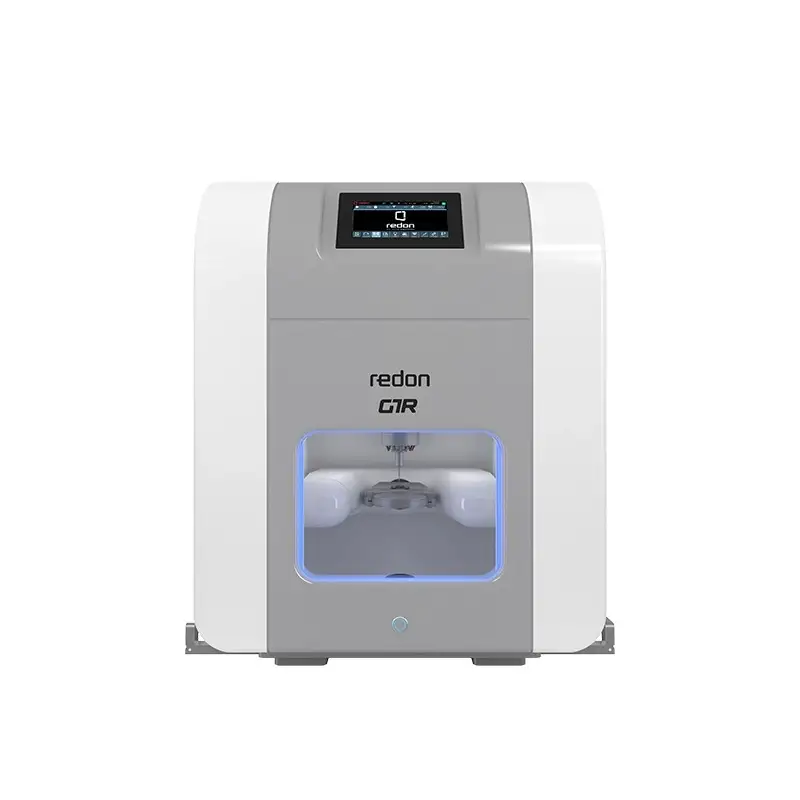

Redon GTR Dental Milling Machine
Model: GTR
5-axis dental milling machine for wet and dry processing of a variety of dental materials, including zirconia, titanium and cobalt-chromium.

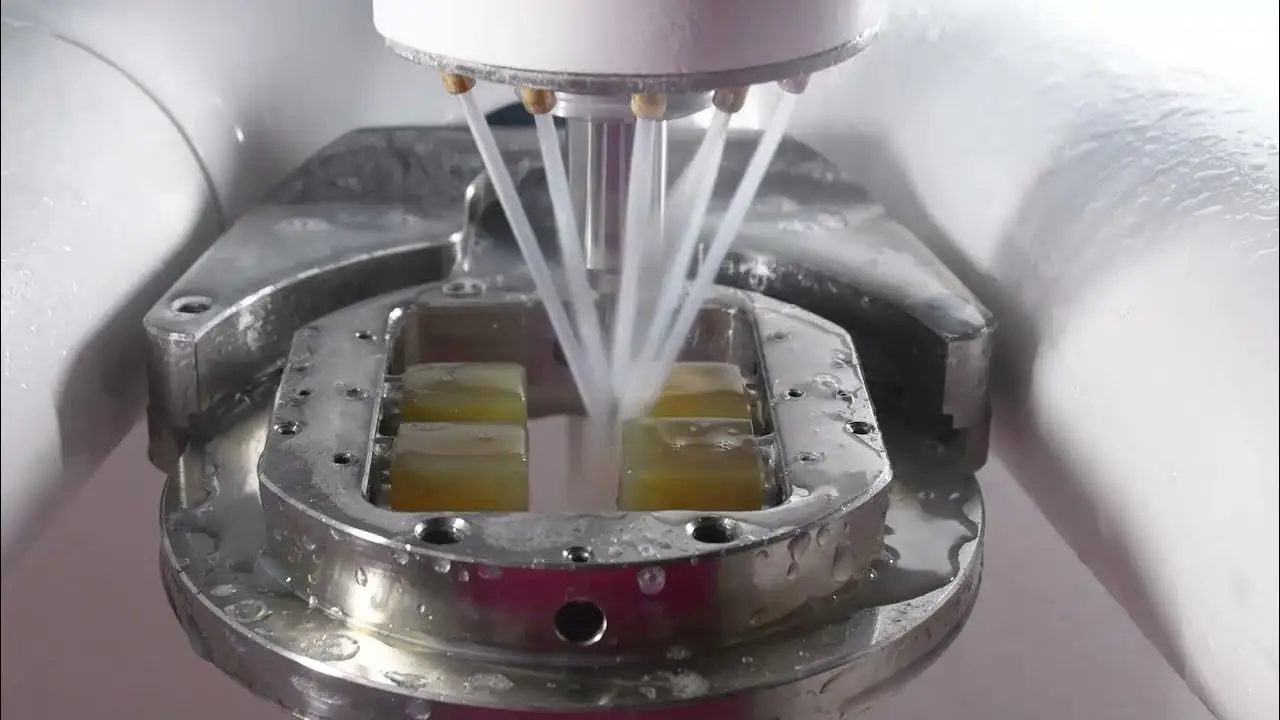

Built for dental laboratories and specialized milling centers, the Redon GTR is a CAD/CAM dental milling machine with 5-axis simultaneous operation. It machines wet or dry and works with a wide range of dental materials, including zirconia, titanium, cobalt-chromium, glass ceramics, PMMA, wax and composites. The spindle runs at up to 60,000 rpm with 3.7 kW of power, and an automatic tool changer holds 12 tools. Wide A- and B-axis movement ranges allow complex machining geometries. The open-system architecture also keeps it compatible with supported CAM software such as MillBox, hyperDENT and WorkNC.
Request a quote
Key Features
5-Axis Milling for Complex Cases
60,000 rpm Digital Spindle
12-Position Automatic Tool Changer
Open CAM System
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | 5-Axis CAD/CAM Dental Milling Machine |
| Number of Axes | 5 |
| Spindle | Digital AC servo spindle |
| Spindle Speed | 60,000 rpm |
| A-Axis Tilt | -30° to +120° |
| B-Axis Tilt | -30° to +210° |
| Tool Changer | Automatic, 12 positions |
| Processing Method | Wet processing |
| Compressed Air | 6 bar, approximately 100 L/min |
| Software | Open CAM system |
| Dimensions | 630 × 660 × 760 mm |
Interested in this device?
Contact our team for pricing, lead time, and clinic-ready setup.
