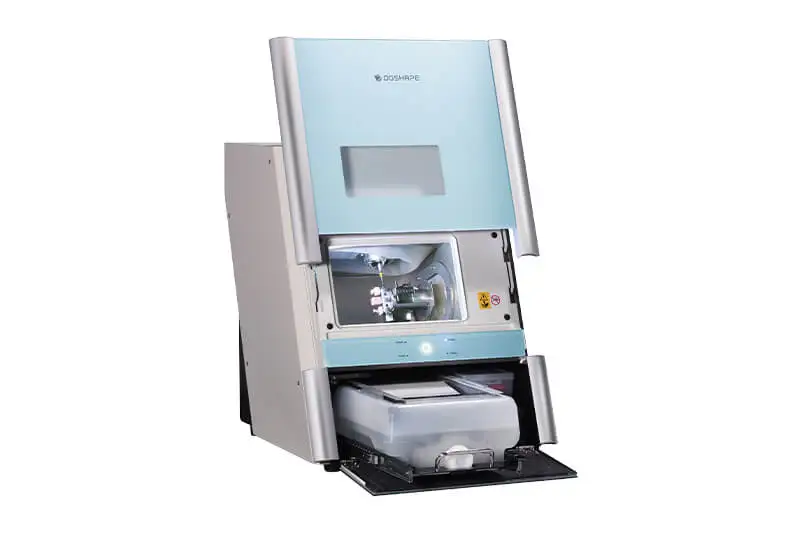

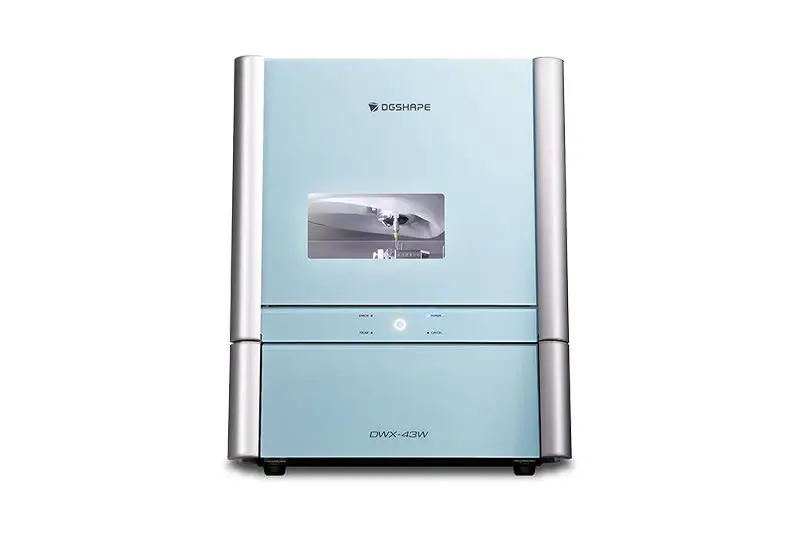

DGSHAPE Milling Machine DWX-43W
Model: DWX-43W
Wet dental milling machine with 4-axis operation, used to fabricate dental restorations through CAD/CAM technology.
DGSHAPE's DWX-43W is a wet dental milling machine with 4-axis operation, built around CAD/CAM technology to produce restorations from compatible materials such as glass ceramics and composite resins. Crowns, bridges, veneers, inlays and onlays can all be fabricated on it. With the designated adapter, the machine holds up to six pin-type dental blocks at once, and DGSHAPE CAM software is included to help prepare and run milling jobs.
Request a quote
Key Features
Precise Wet Milling of Glass Ceramics and Titanium
Automatic 6-Bur Tool Changer
±360° Rotating A-Axis
Compact Desktop Design for Labs and Clinics
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | 4-Axis Wet Dental Milling Machine |
| Processing Method | Wet milling and grinding |
| Spindle Speed | 15,000–60,000 rpm |
| A-Axis Rotation | ±360° |
| Tool Changer | Automatic, 6 burs |
| Bur Shank Diameter | 3 mm |
| Workpiece Type | Pin-type blocks |
| Supported Materials | Glass ceramics, titanium alloy, composite resin, PMMA, PEEK, glass-fiber-reinforced resin, sintered zirconia |
| Power Consumption | Approximately 190 W |
| Compressed Air | Required (approximately 0.2 MPa) |
