STORZ MEDICAL
STORZ MEDICAL DUOLITH SD1 T-TOP ultra Shock Wave System
Model: DUOLITH SD1 T-TOP ultra
Focused shock wave therapy system for the non-invasive treatment of musculoskeletal pain and disorders.

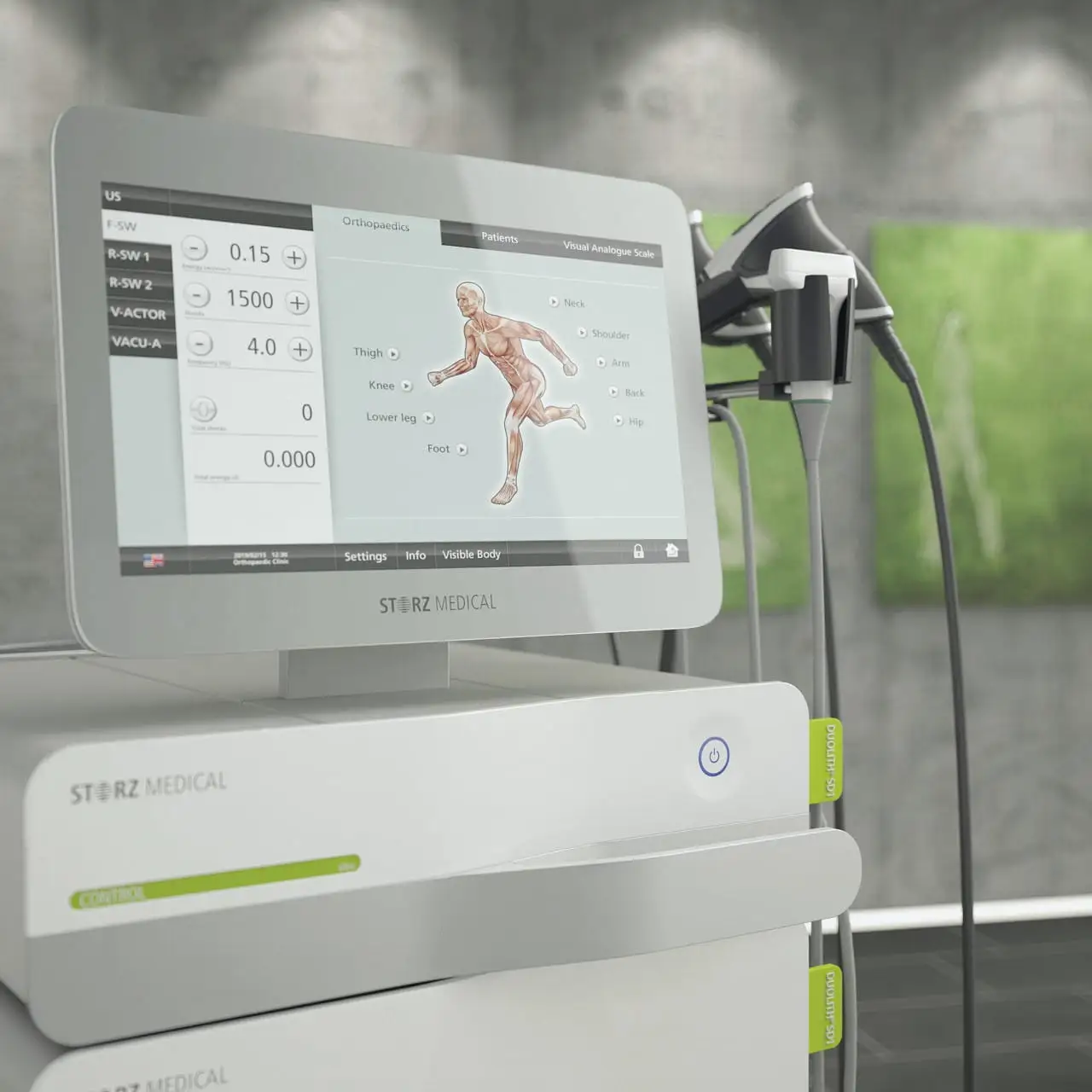

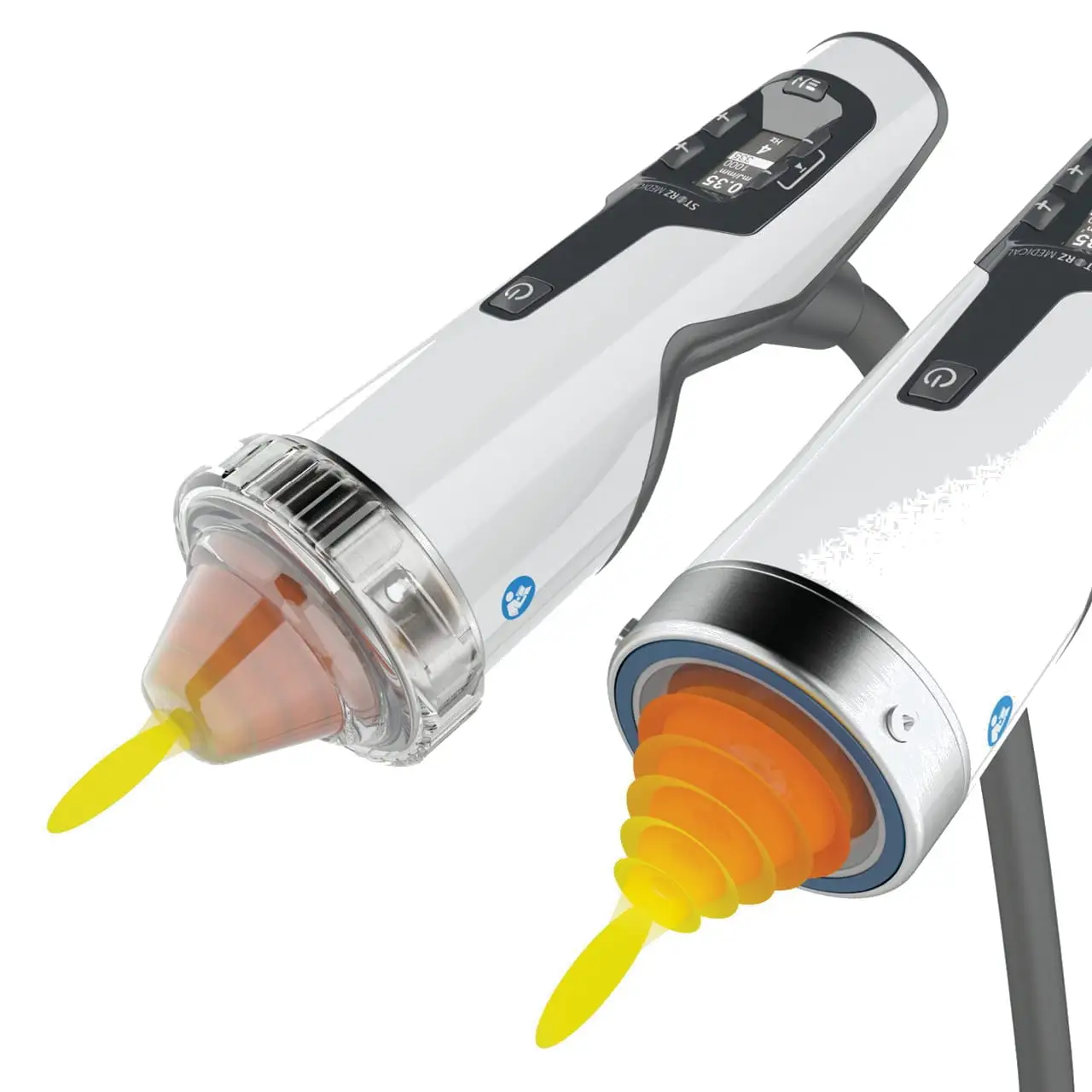

Using focused shock wave therapy, the system directs energy to targeted treatment areas. Controls built into the SEPIA handpiece let the user change energy level and treatment frequency directly during use. The focal zone depth is adjustable from 0 to 65 mm, penetration depth reaches up to 125 mm, and energy transfer ranges from 0.01 to 0.55 mJ/mm². An optional 10-inch touchscreen supports patient management and gives access to illustrated treatment guidance.
Request a quote
Key Features
Focused and Radial Shock Waves in One System
Integrated Ultrasound Imaging for Precise Targeting
Deep Therapeutic Penetration up to 125 mm
Non-Surgical Chronic Pain Relief and Tissue Healing
Technical Specifications
| Specification | Details |
|---|---|
| Device Type | Tower-Based Shock Wave Therapy System |
| Wave Types | Focused shock waves and radial pressure waves |
| Energy Flux Density (Focused) | 0.01–0.55 mJ/mm² |
| Focal Zone Depth | 0–65 mm |
| Therapeutic Penetration Depth | Up to 125 mm |
| Radial Module Frequency | 1–21 Hz |
| Targeting | Integrated ultrasound imaging |
| Applications | Tendinopathies, plantar fasciitis, myofascial trigger points, chronic pain, tissue healing stimulation |
Interested in this device?
Contact our team for pricing, lead time, and clinic-ready setup.
